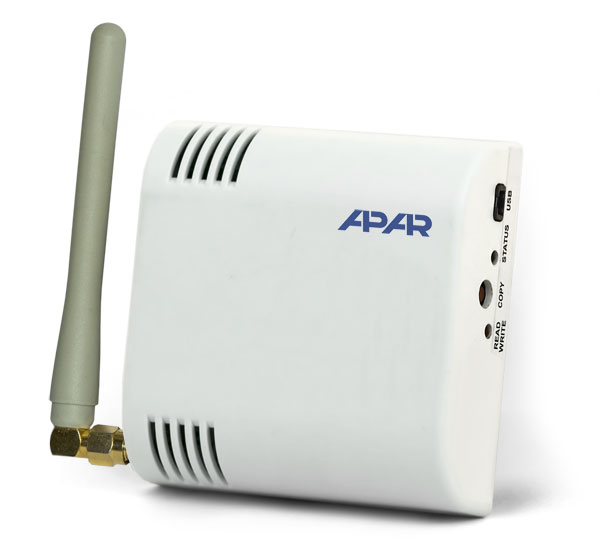

Wireless temperature sensor AR431

Wireless temperature sensor with retransmission function
Producent:

Product Description

  • a series of radio sensors designed to work with AR40x recorders (AR407/AR406)
  • Radio transmission in ISM 868MHz band, range up to 200 m (open space) - depending on the local radio propagation conditions: type and thickness of walls, doors, etc.
  • option of increasing the radio range up to 400 m by activating the function of measurement retransmission from other sensors  (the retransmission requires supplying sensors via the mini-USB port, the network may include up to 3 re-transmitters located within the range of AR40x)
  • 7 radio channels enabling independent work seven neighbouring sets of AR40x recorders and related sensors
  • temperature measurement in the range of -30÷80 °C, 1-channel sensor
  • temperature probe integrated in the housing or external
  • option of presenting and recording data with up to 16 sensors of AR431 type in a single AR40x recorder
  • programmable measurement and update period - from AR40x recorder range: 1 min. to 4 hrs.
  • portable housing (IP20) adapted for wall mounting
  • battery power supply (3.6V, AA type), with the batteries replaced by the user
  • long operation with a new battery (up to 4 years, at room temperature, with measurement period > 30 min and uninterrupted radio transmission)
  • free software provided for displaying recorded results as graphics or text (in AR40x) and for configuring the parameters
  • programmable resolution of indications, calibration parameters, identification number (ID) and other configuration parameters
  • parameter configuration via USB serial interface
  • high accuracy, long-term stability of measurements and immunity to interferences
  • compatibility with RED directive (2014/53/UE)
  • measurement accuracy:
    • ± 0.5°C (in the range of -10÷70°C),
    • ±0.5÷1.7°C (in remaining range)
  • optionally (charged) - test certificate
  • working environment: air and neutral gases, dust-free

WARNING! New sensors with the retransmission function do not work in the old system, which do not support this function. If you purchase a new sensor for the old system, you must re-program ALL devices included in the system to upgrade them to the new standard. If interested, please contact our service department.
