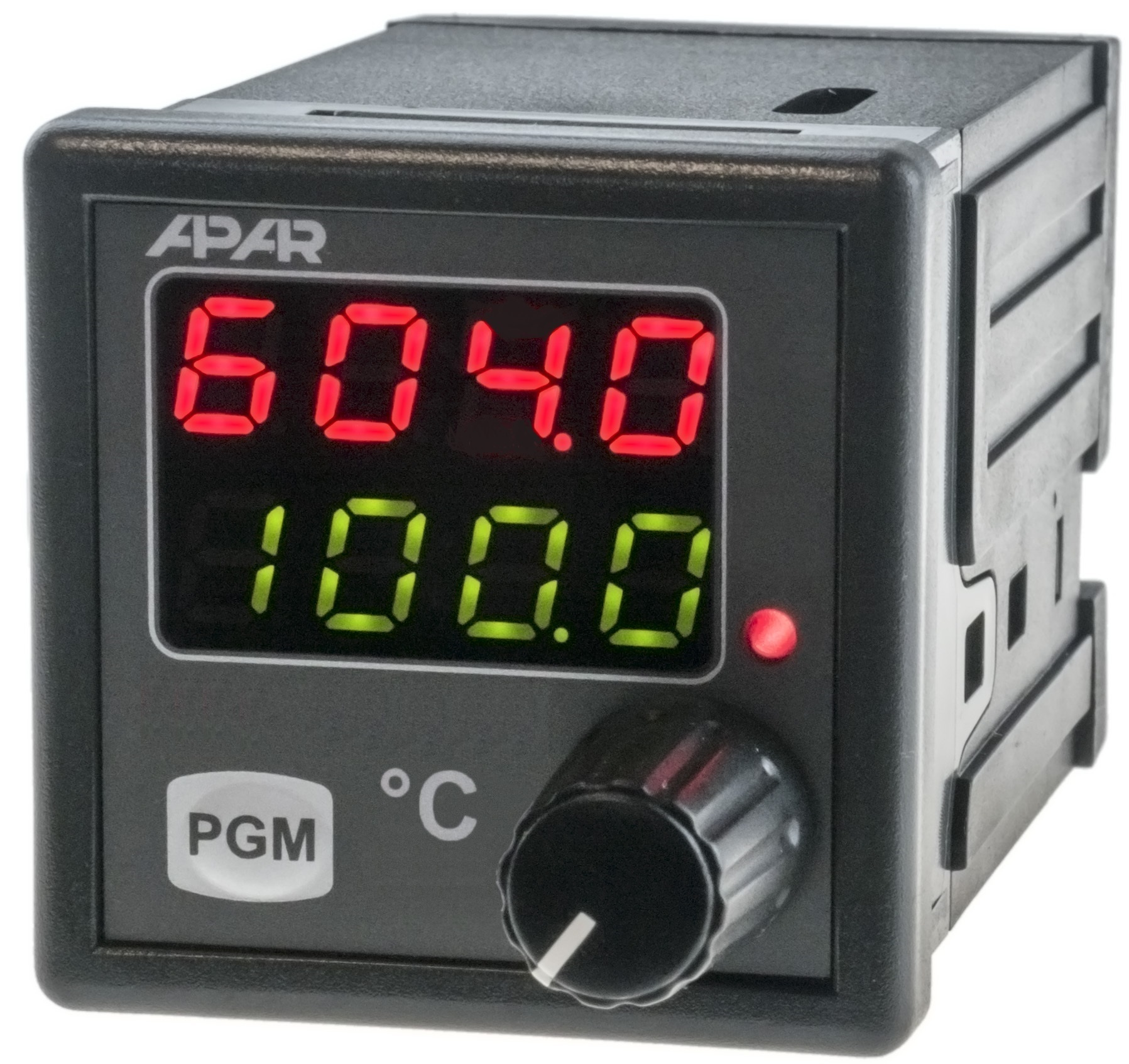

Temperature controller AR604

Temperature controller, knob-adjusted parameters, input Pt100/J/K/S/E/N, 1 relay output/SSR, double readout of measured value and setpoint, ON-OFF, PID, panel-type 48x48mm
Producent:

Product Description

  • microprocessor temperature controller with dual reading of the measured value and setpoint, designed for adjusting the fixed setpoint
  • programming via the membrane keypad and knob (encoder)
  • high accuracy and resistance to interference occurring in industrial environments
  • universal thermometer input:
    • thermoresistance Pt100
    • thermocouple J, K, S, N, E
  • 1 control output relay or SSR
  • ON-OFF control with hysteresis, PID, PID AUTO-TUNING
  • programmable input, range of indications and other parameters
  • option of protecting access to the configuration of parameters with password
  • option of blocking changes to the set values
  • software digital filtering
  • dual LED display, digit height: 2 x 7mm, brightness adjustment
  • signalling:
    • relay activity: red LED
    • detected errors: messages on the display
  • measurement accuracy:
    • 0.2% of the measurement range ± 1 digit
    • thermocouple inputs: 0.3% of measuring range. ± 1 digit, <2 ° C (temp. of cold ends)
  • response time: 0.5÷2 seconds (depending on the digital filtering level)
  • power supply:
    • 230Vac (85÷260 Vac) / 3VA
    • 24Vac/dc (18÷72Vdc/3W, 15÷50Vac/3VA)
  • operating temperature range: 0÷50°C
  • relative humidity range: 0÷90% (no condensation)
  • panel housing INCABOX XT 48x48x79 mm
  • ingress protection rating: IP50 from the front, IP20 from the connectors
  • material: polycarbonate, self-extinguishing NORYL 94V-0
