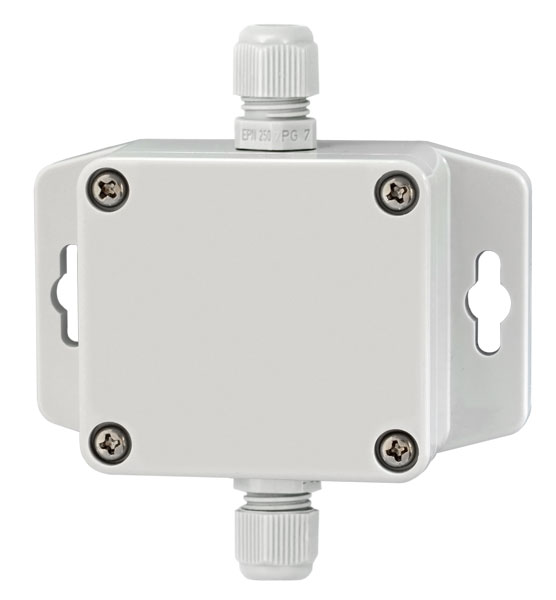

Temperature transducer AR550

Temperature transducer, input Pt100 and thermocouple J, K, S, N, E, current and voltage output, wall-mounted housing IP65
Producent: APAR

Product Description

  • universal thermoresistance input Pt100 and thermocouple J, K, S, N, E
  • 2-wire current output 4÷20mA with power supply in current loop
  • power supply:
    • 2-wire output: 12 ÷ 36 Vdc
    • 3-wire output: 18 ÷ 30 Vdc
  • operating temperature range: 0 ÷ 50 °C - applies also to AR553
  • relative humidity range: 0÷90 % (no condensation)
  • industrial housing (IP65) made of polycarbonate, dimensions: 58x64x35 mm
  • option of programming the input type, range of processing and other device parameters using AR956 or AR950 programmer
