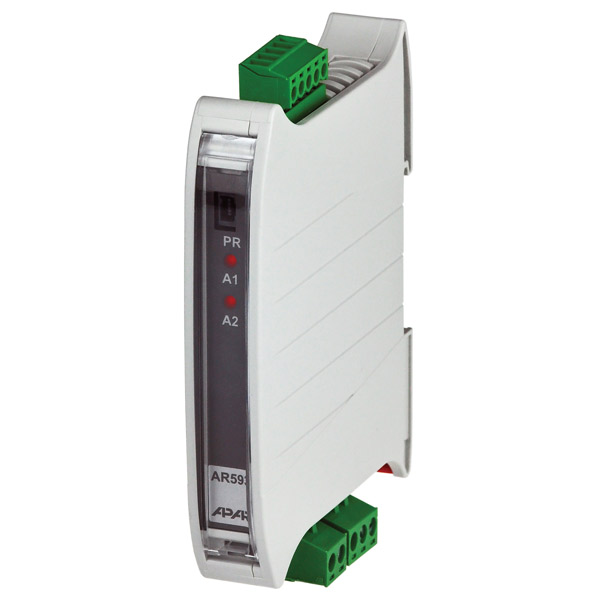

Universal transmitter / separator AR593

Programmable transducer of temperature and analogue standard signals, current and voltage output, galvanic separation, housing for DIN rail
Producent:

Product Description

  • linear processing of the measured temperature or other measure into a current and voltage signal
  • input (programmable):
    • thermoresistance: Pt100, Pt500, Pt1000, Ni100, (2- and 3-wire)
    • thermocouple: J, K, S, B, R, T, E, N (automatic compensation of temperature of the reference junction)
    • analogue: 0/4÷20mA, 0÷10V, 0÷60mV
    • resistance: 0÷2500 Ω
  • two independent configurable outputs:
    • current 0/4÷20mA (active output, cannot be supplied in two-wire current loop)
    • voltage 0/2÷10V
  • programmable alarms for exceeded setpoints with hysteresis
  • input type, processing range and other processing parameters configured with AR950, AR956 programmer or AR956 programming set or by the manufacturer according to customer specifications
  • processing ranges: any in the input measuring range
  • signalling the exceeded processing range, sensor error or alarm output status (on-off type):
    • optical: red LED
    • output signal
  • triple galvanic separation(input / output / power): 1.5 kV, 50 Hz, 1 min
  • housing for mounting on 35 mm DIN rail
  • high accuracy and immunity to interference
  • outputs (programmable):
    • current: 0/4÷20 mA, 20÷0/4 mA, Ro ≤ 500 Ω
    • voltage: 0/2÷10 V, 10÷0/2 V, Rw > 2.5 kΩ
  • power supply: 24Vac/dc (18÷50 Vdc, 13÷35 Vac),
  • response time (10÷90%): 360ms, programmable in the range of 240÷1600ms
  • operating temperature range: 0 ÷ 65 °C
  • relative humidity range: 0 ÷ 90 % (no condensation)
  • ingress protection rating: IP20
