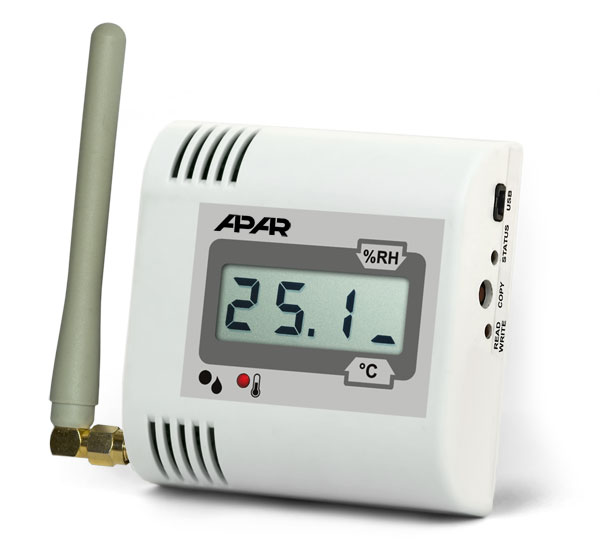

Wireless temperature and humidity sensor AR436

Wireless temperature and humidity sensor with LCD display and retransmission function
Producent: APAR

Product Description

  • a series of radio sensors designed to work with AR40x recorders (AR407/AR406)
  • Radio transmission in ISM 868MHz band, range up to 200 m (open space) - depending on the local radio propagation conditions: type and thickness of walls, doors, etc.
  • option of increasing the radio range up to 400 m by activating the function of measurement retransmission from other sensors  (the retransmission requires supplying sensors via the mini-USB port, the network may include up to 3 re-transmitters located within the range of AR40x)
  • 7 radio channels enabling independent work seven neighbouring sets of AR40x recorders and related sensors
  • measurement of relative humidity (0÷100%RH) and temperature (-30÷80 °C - version with external probe or -20÷70 °C with internal probe), 2-channel sensor
  • LCD display showing the measured values, messages and errors
  • alarms: lower, upper, in the band and outside the band, LED indicator
  • option of presenting and recording data in one- (humidity only) or two-channel configuration with up to 16 sensors of AR436 type in a single AR40x recorder
  • programmable measurement and update period - from AR40x recorder range: 1 min. to 4 hrs.
  • portable housing (IP20) adapted for wall mounting
  • battery power supply (3.6V, AA type), with the batteries replaced by the user
  • long operation with a new battery (up to 2 years, at room temperature, with measurement period > 40 min and uninterrupted radio transmission)
  • free software provided for displaying recorded results as graphics or text (in AR40x) and for configuring the parameters
  • programmable resolution of indications, calibration and alarm parameters, identification number (ID) and other configuration parameters
  • parameter configuration via USB serial interface
  • high accuracy, long-term stability of measurements and immunity to interferences
  • compatibility with RED directive (2014/53/UE)
  • measurement accuracy:
    • humidity: ± 3%RH (in the range of 20÷80%RH), ±3÷5%RH (for remaining range)
    • temperature: ± 0.5°C (in the range of 20÷30°C), ± 0.5°C to 1.8°C (for remaining range)
  • hysteresis ±1%RH
  • long-term stability: <0.5% RH/year
  • optionally (charged) - test certificate
  • working environment: air and neutral gases, dust-free

WARNING! New sensors with the retransmission function do not work in the old system, which do not support this function. If you purchase a new sensor for the old system, you must re-program ALL devices included in the system to upgrade them to the new standard. If interested, please contact our service department.
